Designed for residential and commercial buildings with smooth operation, modern cabin designs, and reliable safety features.

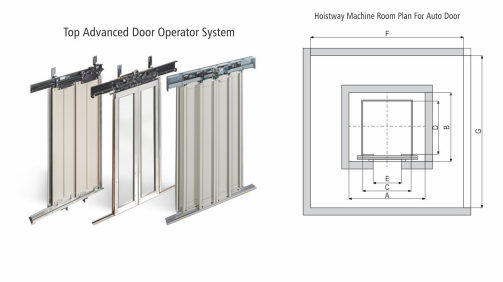

RISE Hoist Way Machine Room Size Passenger Lift With Auto Doors
| LOAD | LIFT WELL | CAR INSIDE | ENTRANCE | MACHINE ROOM | PIT | O.H. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERSON | WEIGHT (KG) | WIDTH (A) | DEPTH (B) | WIDTH (C) | DEPTH (D) | WIDTH (E) | WIDTH (F) | DEPTH | HEIGHT | |||
| 4 | 272 | 1900 | 1300 | 1100 | 700 | 700 | 2900 | 3300 | 2500 | 1500 | 4800 | |
| 6 | 408 | 1900 | 1700 | 1100 | 1000 | 700 | 2900 | 3700 | 2500 | 1500 | 4800 | |
| 8 | 544 | 1900 | 1900 | 1300 | 1100 | 800 | 2900 | 3900 | 2500 | 1500 | 4800 | |
| 10 | 680 | 1900 | 2100 | 1300 | 1350 | 800 | 2900 | 4100 | 2500 | 1500 | 4800 | |
| 13 | 884 | 2500 | 1900 | 2000 | 1100 | 900 | 3500 | 3900 | 2500 | 1500 | 4800 | |
| 16 | 1088 | 2500 | 2100 | 2000 | 1300 | 900 | 3500 | 4100 | 2500 | 1500 | 4800 | |
| 20 | 1360 | 2500 | 2400 | 2000 | 1500 | 2000 | 3500 | 4400 | 2500 | 1500 | 4800 | |
