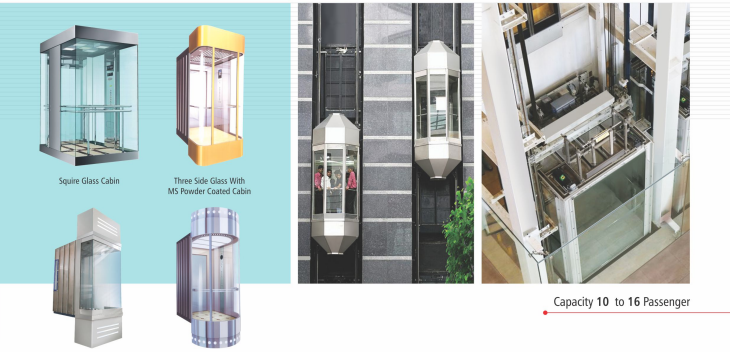

Glass elevators designed for hotels, malls, and premium buildings offering aesthetic appeal and panoramic views.

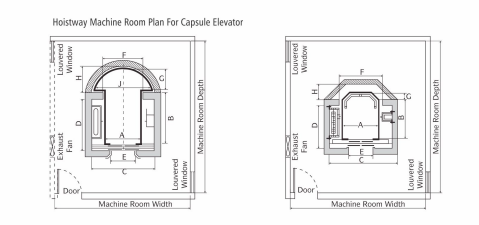

Planing Guide
| Load | Car Inside | Left Well | Entrance | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Person | Kgs. | A | B | G | C | D | F | H | E | E |
| 10 | 680 | 1100 | 1300 | 1400 | 650 | 2200 | 1325 | 1330 | 1100 | 800 |
| 13 | 884 | 1200 | 1400 | 1550 | 700 | 2400 | 1425 | 1430 | 1100 | 900 |
| 16 | 1088 | 1300 | 1500 | 1700 | 750 | 2800 | 1530 | 1530 | 1200 | 1000 |
| Load | Car Inside | Left Well | Entrance | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Person | Kgs. | A | B | G | C | D | F | H | E |
| 10 | 680 | 1250 | 1300 | 250 | 2200 | 1450 | 1480 | 580 | 800 |
| 13 | 884 | 1400 | 1400 | 300 | 2400 | 1550 | 1630 | 650 | 900 |
| 16 | 1088 | 1550 | 1500 | 350 | 2800 | 1780 | 1650 | 790 | 1000 |
