Technical Data

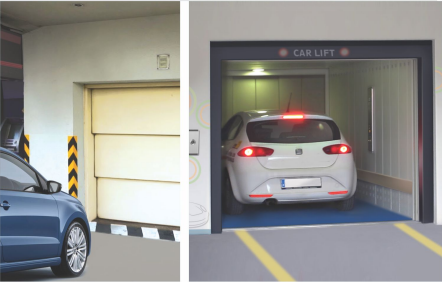

| Description | Vertical Transportation for Cars/ LMVs |
|---|---|
| Segment | Industrial applications & Car Parks |
| Max. travel (m) | 100 (Solutions available for higher travel) |
| Max. load (kg) |
5000 - 30000 kg (Solutions available for higher capacities) |
| Max. speed (m/s) |
0.5 mps (Solutions available for other speeds) |
| Max. group size | Duplex |
Technical Specification
| Model | ESR - 001 | Stall Width |
|---|---|---|
| Stall length | 4.0 Meter | 2.2 Meter |
| Pole Height | Max Traveling Height | Rated Lifting Capacity |
| 3.4 Meter | 2.0 Meter | 2000 kg |
| Rated Speed | Up 0.4 M/S, Down 0.05 M/S | |
| Operation | Hydraulic Power Pack with 2HP Motor, One Cylinder with Control Panel (Per Unit) Operated by Key | |
| Electrical Requirement | 3-Phase 415V 50Hz / 1-Phase 220V | |
